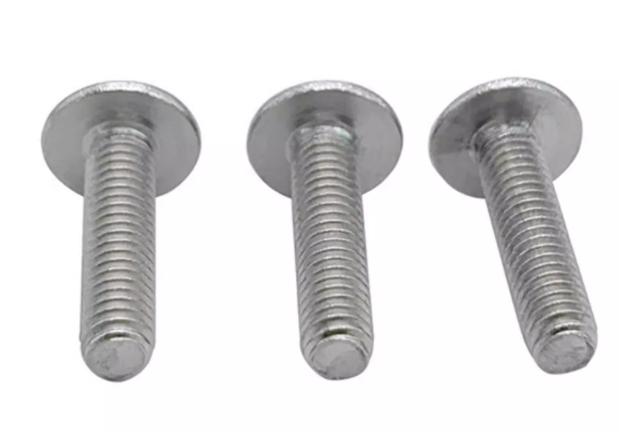

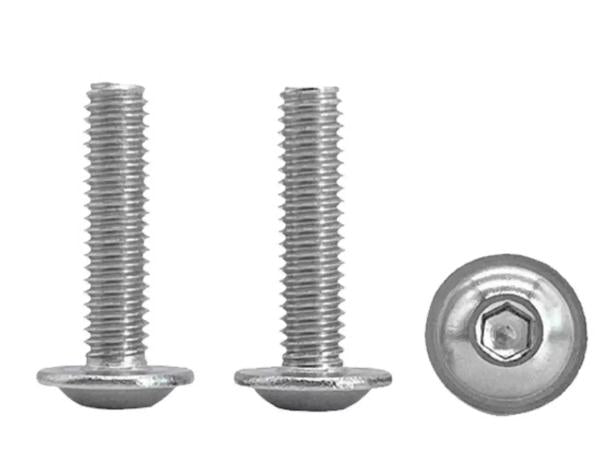

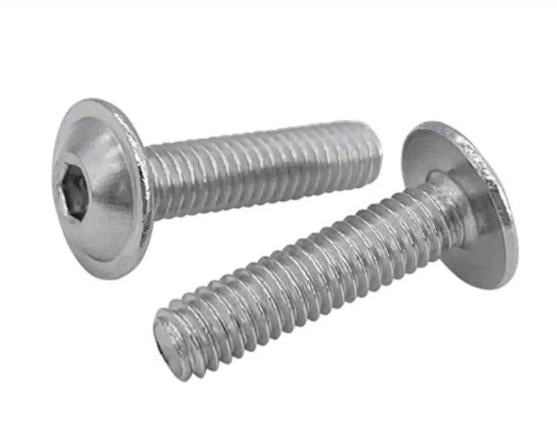

M2-M10 304 Stainless Steel Torx Button Head Flange Screws (ISO 7380-2)

M2-M10 304 Stainless Steel Torx Button Head Flange Screws (ISO 7380-2)

$3.16 USD
$3.16 USD $3.16 USD
Sale Sold out
Color classification
Streamline your assembly process with our M2-M10 304 Stainless Steel Button Head Flange Screws. Also known as a "flange button head bolt," this fastener features an integrated washer face (flange) that distributes clamping load over a wider area, eliminating the need for a separate flat washer. This saves time and simplifies inventory management.
Manufactured to stringent ISO 7380-2 standards, these screws utilize a secure Torx (6-Lobe) drive system and offer excellent corrosion resistance.

Key Features
  • Integrated Flange: The built-in flange acts as a washer, providing a larger bearing surface to protect the mating material and distribute stress.
  • A2-70 Material: Made from Grade 304 Stainless Steel, ensuring superior durability and resistance to rust and oxidation in various environments.
  • Button Head (Dome Head): Low-profile, aesthetic head design perfect for applications where a decorative or less obtrusive finish is required.
  • Secure Torx Drive: The 6-Lobe (Star) drive system minimizes cam-out, allowing for higher torque application and reducing installation errors.
  • ISO Compliance: Fully compliant with ISO 7380-2 standards for flange button head screws, guaranteeing consistent quality and fit.
  • Wide Range: Available in full metric sizing from M2 (fine precision) up to M10 (heavy duty).

Technical Specifications

Attribute Details
Material: 304 Stainless Steel (A2)
Size Range: M2 to M10 (Metric)
Standard: ISO 7380-2
Head Style: Button Head (Dome Head) with Flange
Drive Type: Torx (6-Lobe)
Thread Type: Full Machine Thread (Metric Coarse)

Applications
  • Automotive Assembly
  • General Machinery & Equipment
  • Furniture Manufacturing (Aesthetic finish)
  • Sheet Metal Fabrication
  • Marine Environments (Due to SS304)
